Description

SPECIFICATIONS:

Body: Heavy duty steel constriction.
Stainless steel cladding, Fire bowl cladding from sides & bottom by thermal bricks fire stone,

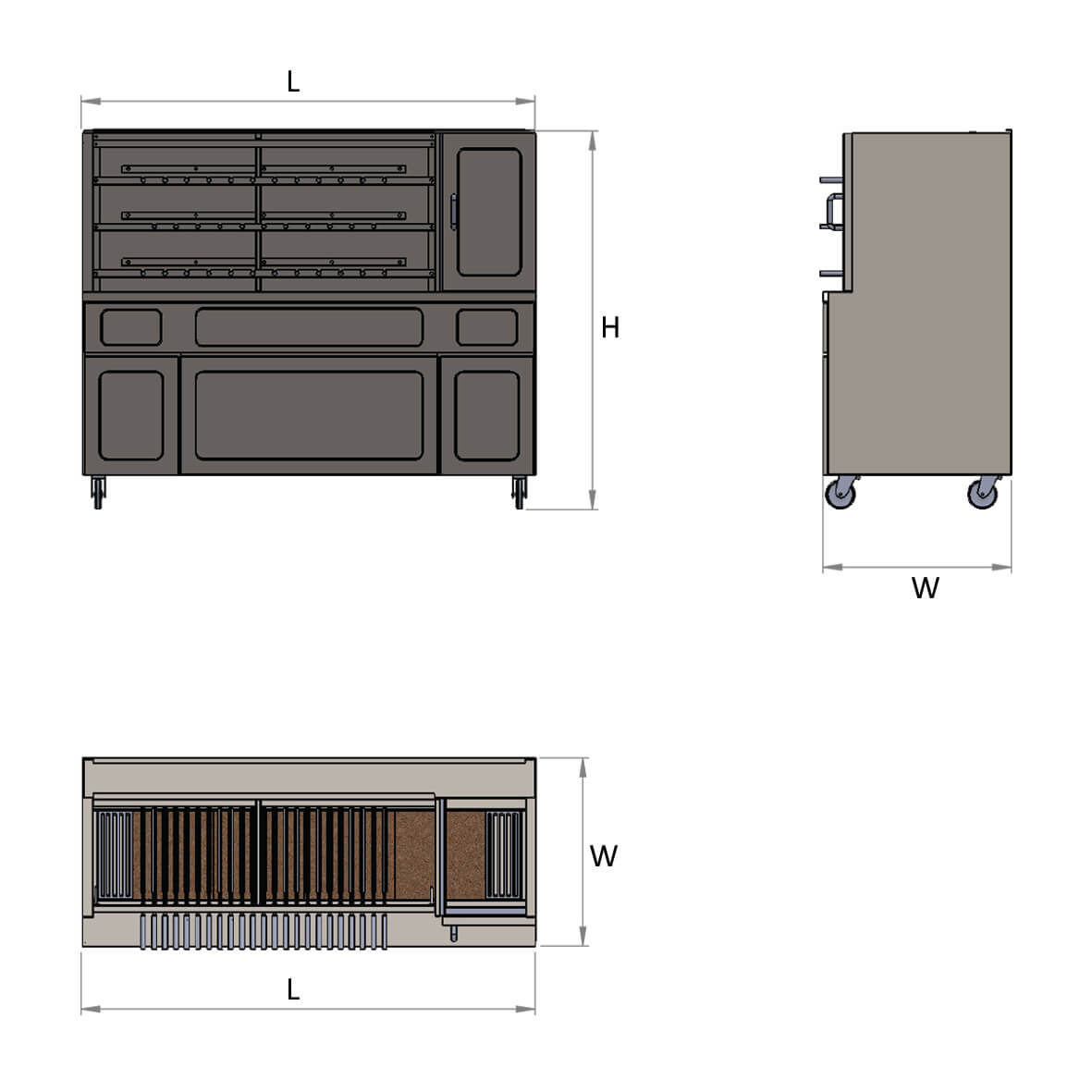

total dimension 1900 × 385 × 210mm, cover with (4) steel grates Dimensions of (490 × 350 mm).
Revolving: System-located at back, revolving (36) skewers.
Motor source: 220V/1ph/50Hz.
Storage Charcoal Zone: Dimensions
(40x55x75 cm)with hinged door.Barbecue zone: Length of 126 cm, Four (4)
rotary levels, each level complete with (14)
revolving gears, to use (skewer, baskets, fork)
Skewers, baskets and fork (not included)
Grill zone: Length of 65 cm, Two levels
The unit complete with 2 stainless steel trolleys Dimensions (50x65x50 cm).
Wheels: (4) rubber casters diameter 5”,two of them with brakes.

TECHNICAL DATA:

MODEL (MFC 17-07-250 Brazilian) – Dimensions (2500×825×1000/1700) – Electric Power 0.2.
