Description

Bowl: Stainless steel (304) construction, top
(1.5mm) thickness, bowl (1.25mm) thickness,
cooling pipe-work from copper tubes, with
insulation (40mm) thickness, static cooling.
Electric source: 220V/1Ph/50HZ .
Refrigeration system: Air cooled compressor,
Heavy duty, allowing bowl temperature zero
°C, thermostatically controlled, refrigerant
R404A with indication lamp & ON/OFF switch .
Stand: painted steel stand with adjustable
leveling feets, height (900mm) other height
available up-on request.
Buffet: By the owner and requested
maintenance door & proper ventilation to
the refrigeration unit.
Available up-on request: Gastronome G/N,
neutral over mounted shelf with sneeze glass
& lighting.

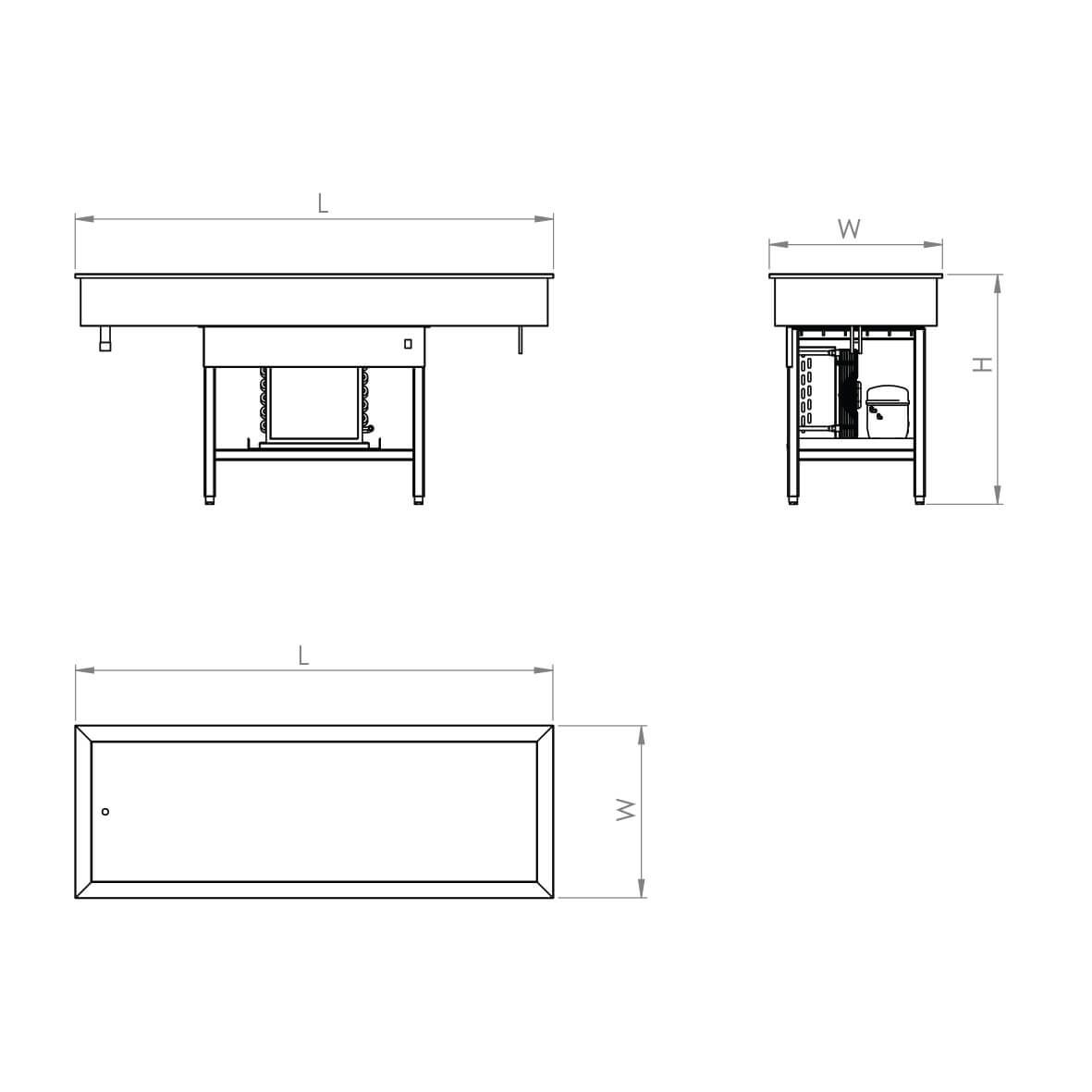

MODEL                                                                                Dimensions (mm)                 Eclectic Power (KW)

L       W      H
MFS-03-09-44
Drop-In cold Bain Maria-capacity (1) G/N 1/1                425X630X300                  0.187

MFS-03-09-77
Drop-In cold Bain Maria-capacity (2) G/N 1/1                750X630X900                  0.187

MFS-03-09-111
Drop-In cold Bain Maria-capacity (3) G/N 1/1                1090X630X900                0.249

MFS-03-09-143
Drop-In cold Bain Maria-capacity (4) G/N 1/1              1410X630X900                    0.249

MFS-03-09-176
Drop-In cold Bain Maria-capacity (5) G/N 1/1              1740X630X900                     0.373
