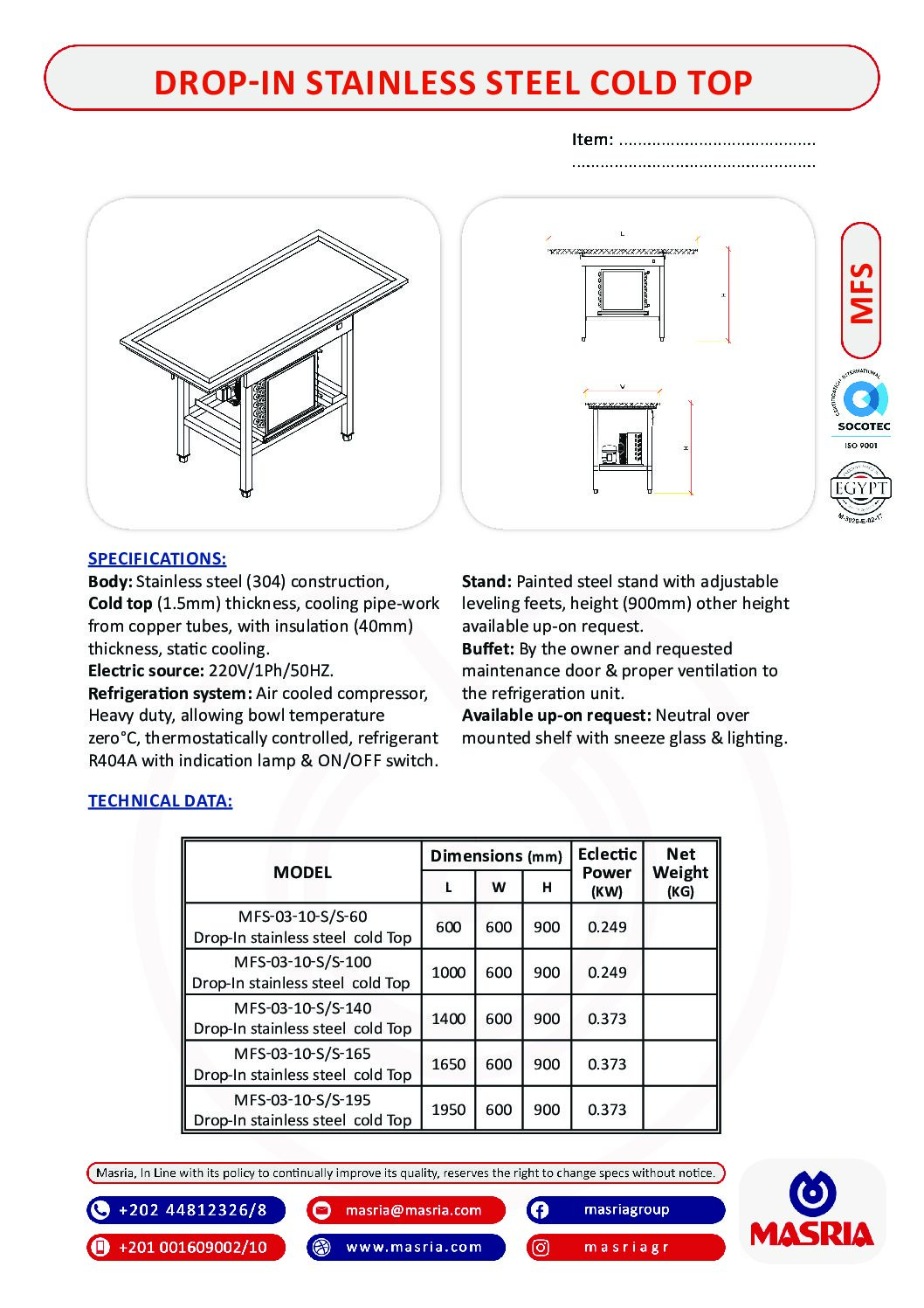

Description

Body: Stainless steel (304) construction,
Cold top (1.5mm) thickness, cooling pipe-work
from copper tubes, with insulation (40mm)
thickness, static cooling.
Electric source: 220V/1Ph/50HZ .
Refrigeration system: Air cooled compressor,
Heavy duty, allowing bowl temperature
zero°C, thermostatically controlled, refrigerant
R404A with indication lamp & ON/OFF switch.
Stand: Painted steel stand with adjustable
leveling feets, height (900mm) other height
available up-on request.
Buffet: By the owner and requested
maintenance door & proper ventilation to
the refrigeration unit .
Available up-on request: Neutral over
mounted shelf with sneeze glass & lighting.

MODEL                                                                                Dimensions (mm)                 Eclectic Power (KW)

L       W      H
MFS-03-10-S/S-60
Drop-In stainless steel cold Top                                        600X600X900                  0.249

MFS-03-10-S/S-100
Drop-In stainless steel cold Top                                       1000X600X900                  0.249

MFS-03-10-S/S-140
Drop-In stainless steel cold Top                                       1400X600X900                   0.373

MFS-03-10-S/S-165
Drop-In stainless steel cold Top                                       1650X600X900                    0.373

MFS-03-10-S/S-195
Drop-In stainless steel cold Top                                       1950X600X900                     0.373
