SPECIFICATIONS:
Body: Stainless steel (304) construction, pan and jacket, with normal cover with handel, heavy duty hinges, thermal insulation all over the pan.
Control: thermostatically controlled, water
filling, water level, pressure relive, gauges, jacket safety control.
Accessories: heavy duty, high quality.
Burners: controlled by heavy duty cocks provided with safety flame failure devices, main burner on from pilot with piezo ignition, for these in-direct models, jacket water level control is obtained by means of one tap fitted to the front of the equipment. All in-direct (jacket) models are equipped with jacket
safety control valve.
Legs: (4) legs, stainless steel, 60 mm diameter, with Adjustable leveling feets.
TECHNICAL DATA:

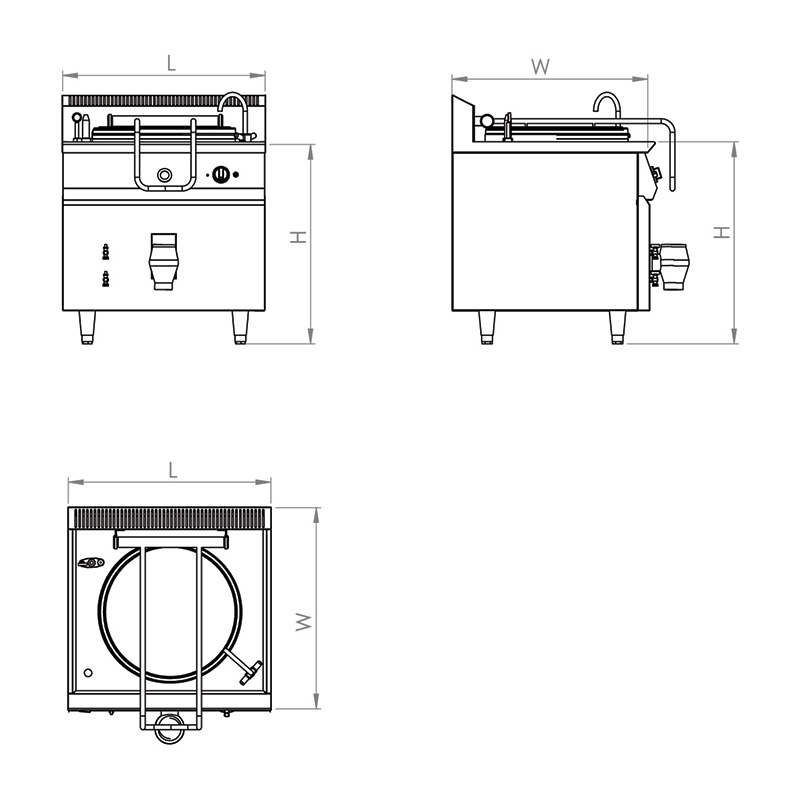

MODEL (MGBP01-100) – Pan capacity 100 (It) – Dimensions (900×900×900) – Gas Power 16.8 (kwgas).
MODEL (MGBP-I-01-100) – Pan capacity 100 (It) – Dimensions (900×900×900) – Gas Power 25.4 (kwgas).
MODEL (MGBP02-150) – Pan capacity 150 (It) – Dimensions (900×900×900) – Gas Power 16.8 (kwgas).
MODEL (MGBP-I-02-150) – Pan capacity 150 (It) – Dimensions (900×900×900) – Gas Power 25.4 (kwgas).
MODEL (MGBP-I-02-300) – Pan capacity 300 (It) – Dimensions (1100×1100×900) – Gas Power 25.4 (kWgas).
