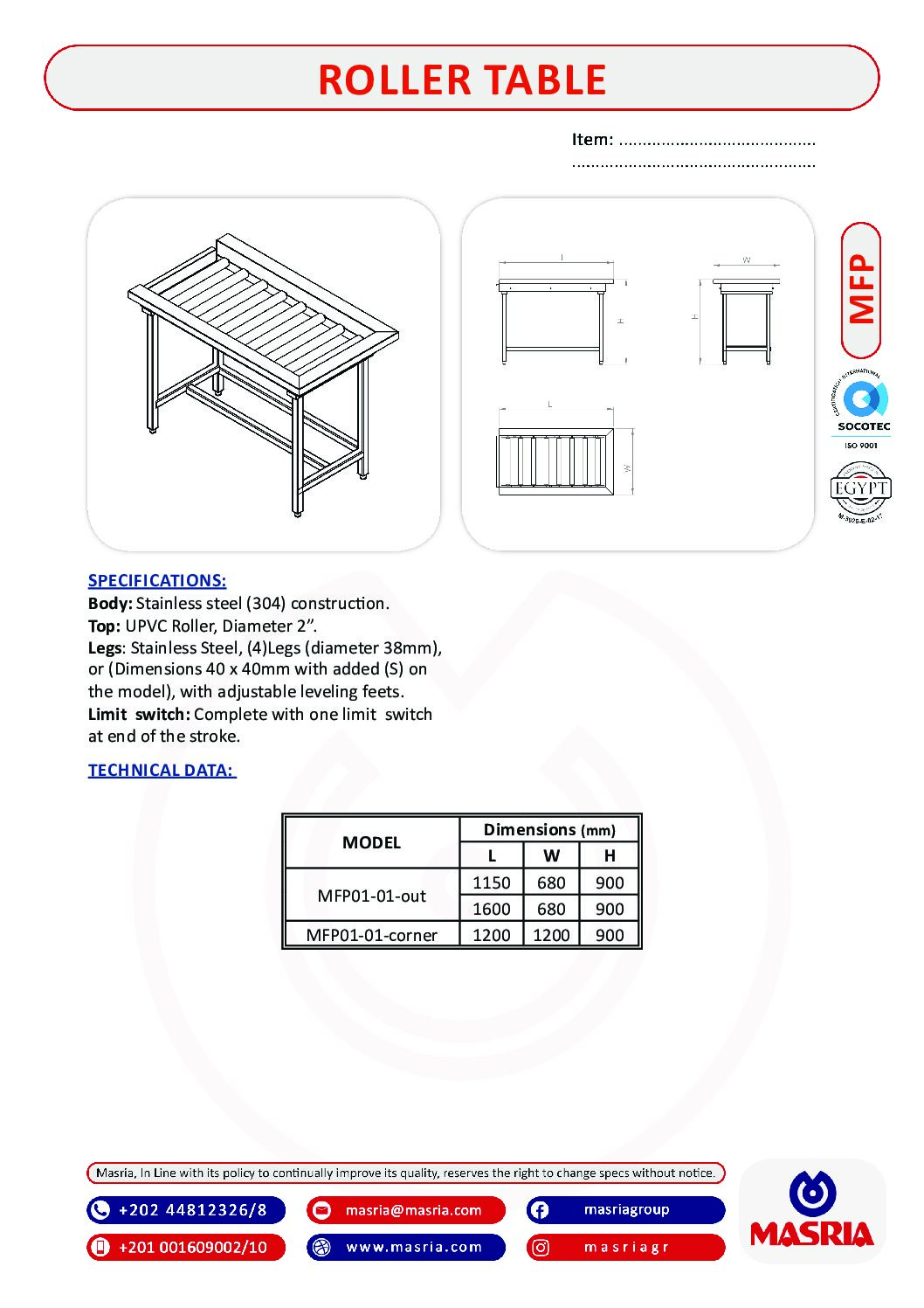

Description

Body: Stainless steel (304) construction. ‎
Top: UPVC Roller, Diameter 2”.
Legs: Stainless Steel, (4)Legs (diameter 38mm), or (Dimensions 40 x 40mm with added (S) on the model), with adjustable Leveling feets.
Limit switch: Complete with one limit switch at ‎end of the stroke.‎

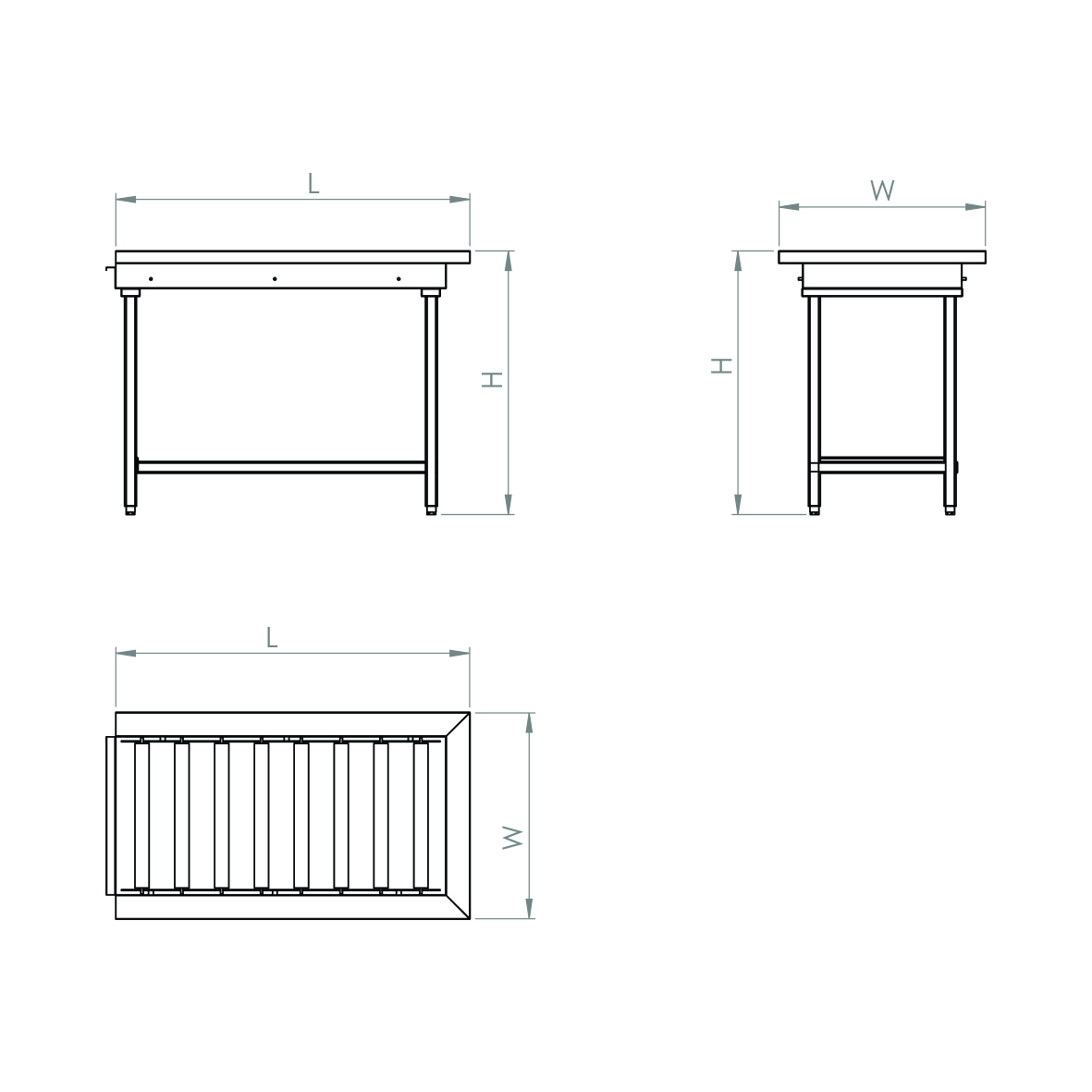

MODEL                                               Dimensions (mm)L W H
MFP01-01-out                                       1150x 680x 900
1600x 680 x900

MFP01-01-corner                                   1200x 1200x 900
