Description

Frame: Stainless Steel (40x40mm),
Safety Glass Window (8 mm thickness) at
the upper half.
Door Section: Steel Construction, Stainless Steel cladding, insulated, the lower half is insulated by polyurethane injected, 40 mm thickness, 40 kg/m3 density,
Outer and inner cladding stainless steel
1.00 mm thickness,1250 mm height
Protected with two Checkered Aluminum plates 2.00 mm thick, 150 mm height.
Equipped with stainless steel handle one at each side and three stainless steel hinges,
Lock provided by client

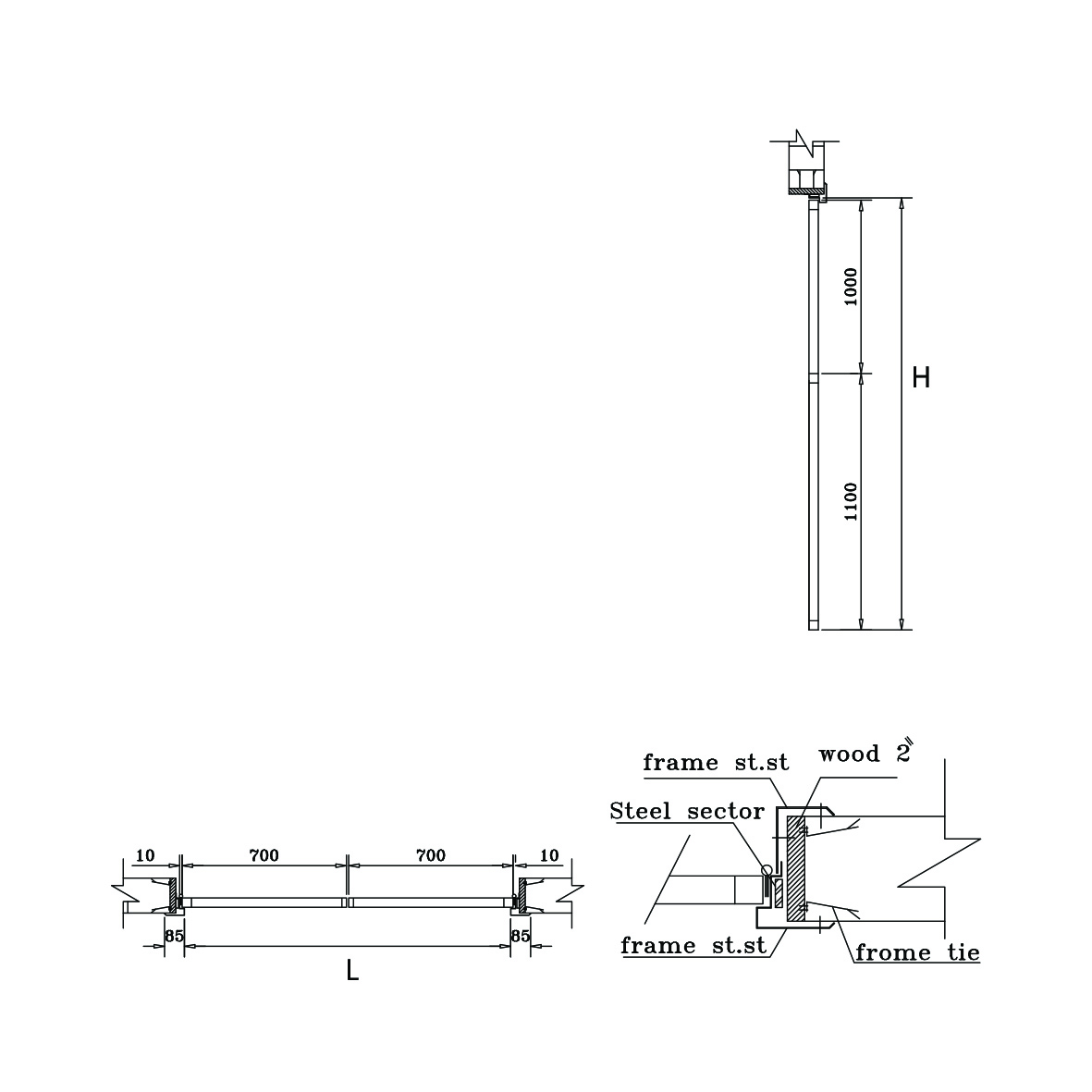

Fixed Frame: Wooden, section 2”x6”, clear width 100 cm, (by civil contractor) covered
with stainless steel sheet 1.5 mm thickness

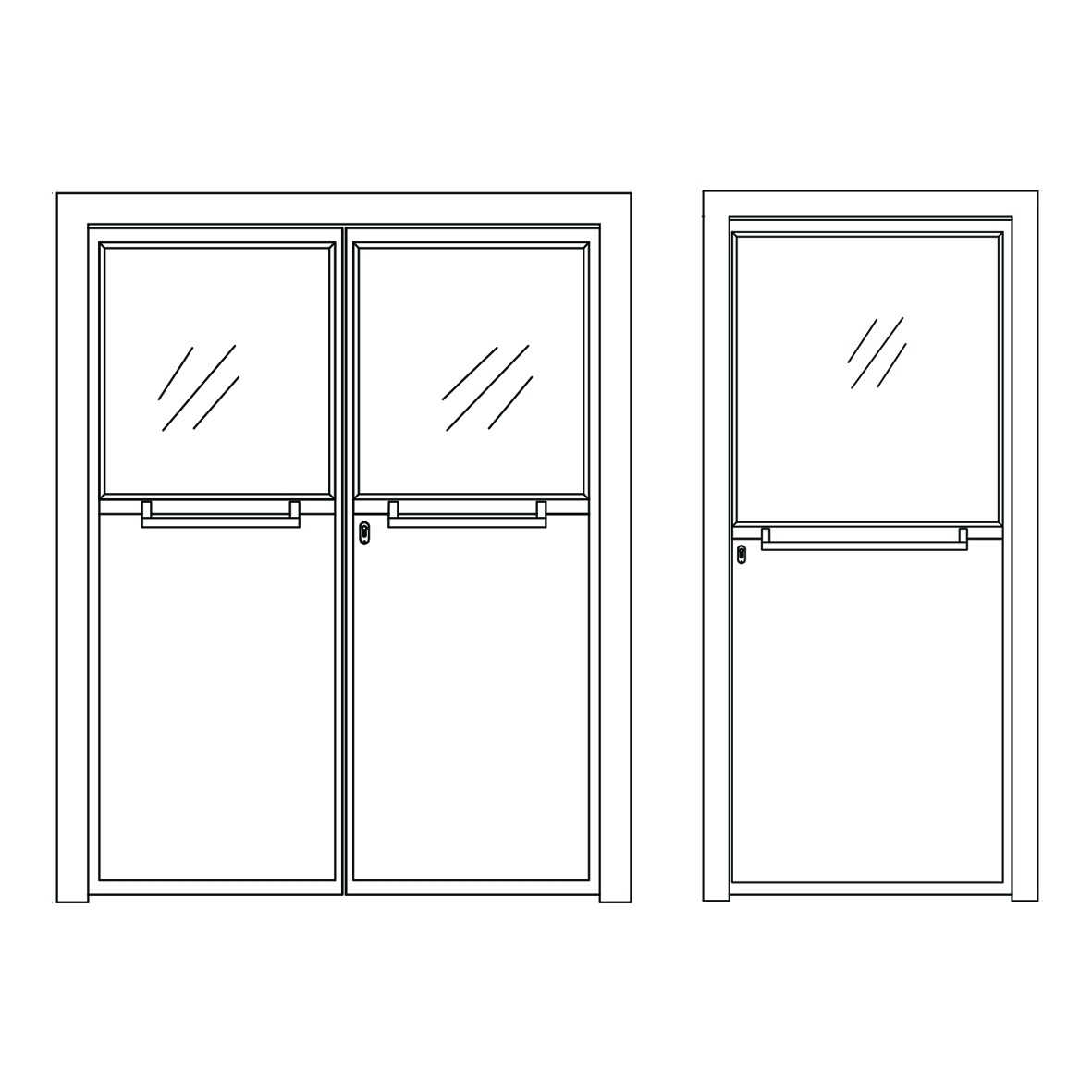

MODEL                           Dimensions (mm) L H
MFP-SD-1H
Single Door                            1000x 2200

MFP-SD-2H
Double Door                            1400x 2200
