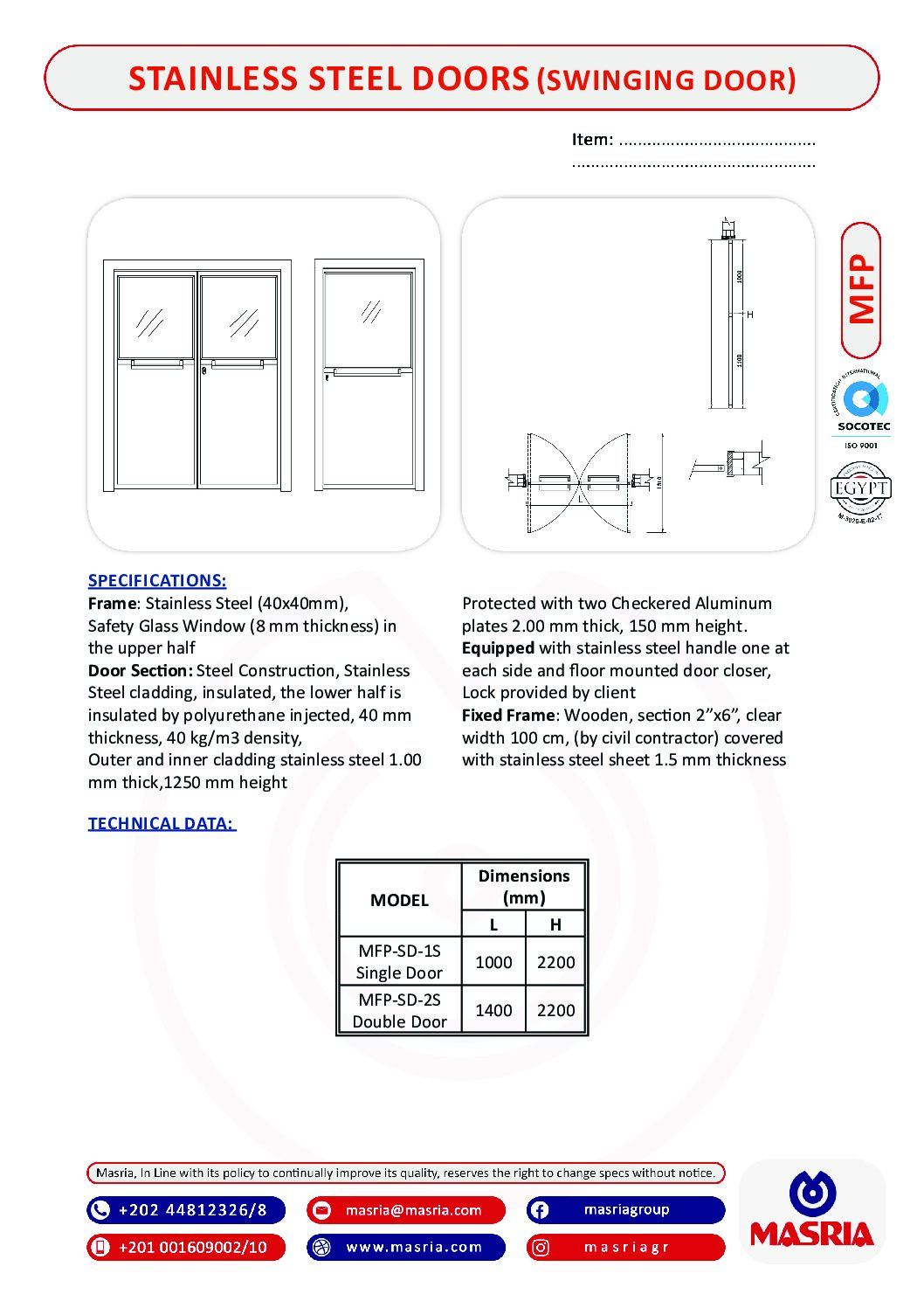

Description

Frame: Stainless Steel (40x40mm),
Safety Glass Window (8 mm thickness) in
the upper half
Door Section: Steel Construction, Stainless Steel cladding, insulated, the lower half is insulated by polyurethane injected, 40 mm thickness, 40 kg/m3 density,
Outer and inner cladding stainless steel 1.00 mm thick,1250 mm height
Protected with two Checkered Aluminum plates 2.00 mm thick, 150 mm height.
Equipped with stainless steel handle one at each side and floor mounted door closer,
Lock provided by client
Fixed Frame: Wooden, section 2”x6”, clear width 100 cm, (by civil contractor) covered with stainless steel sheet 1.5 mm thickness

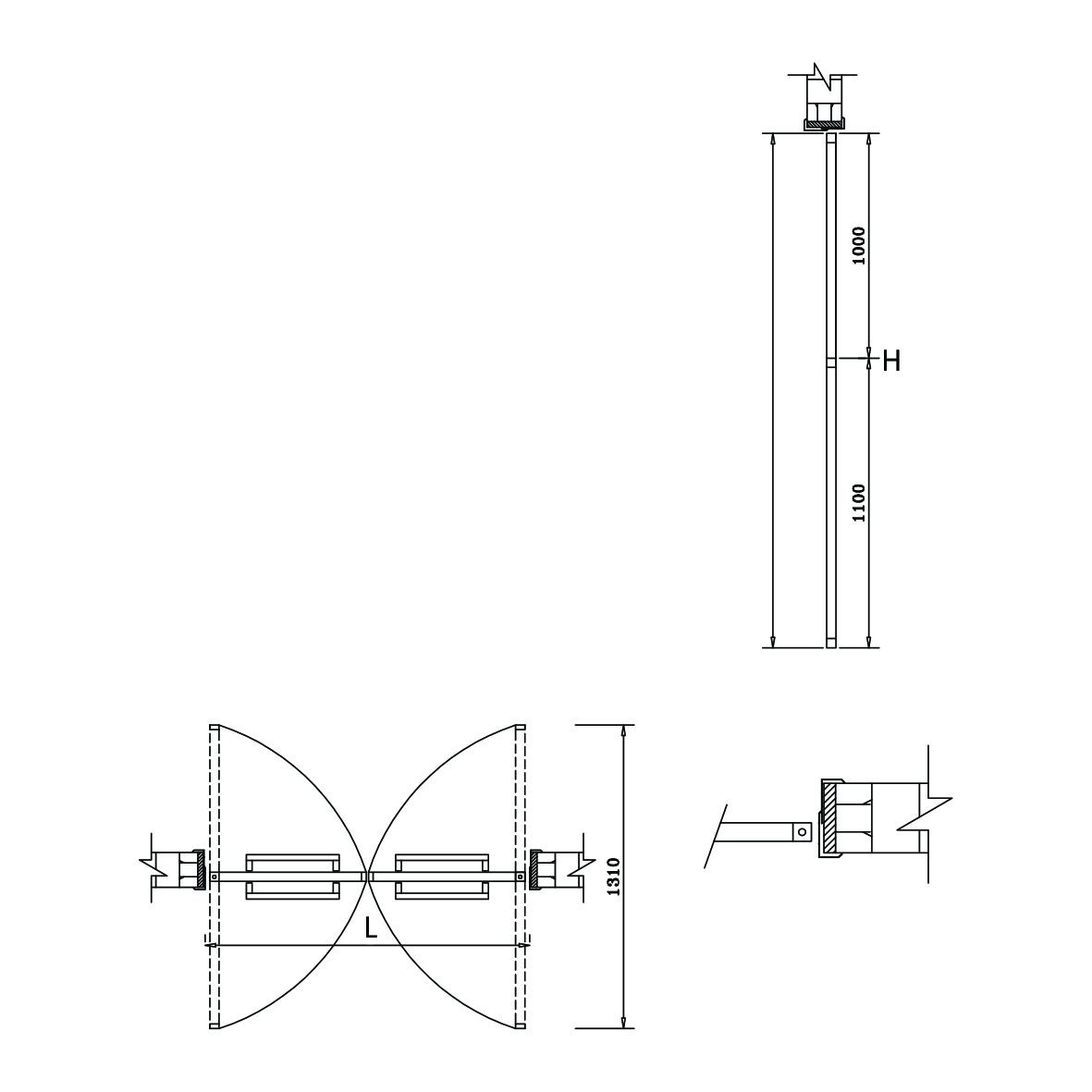

MODEL                  Dimensions (mm) L H
MFP-SD-1S
Single Door                1000 x 2200

MFP-SD-2S
Double Door                   1400 x 2200
