Description

Body: Stainless Steel Construction
Drain board: Stainless Steel (304), 1.5mm
thickness, reinforcement and sound
deadening material at bottom, incline in
the direction of bowls
Bowls: Stainless Steel, (3)Deep Drawn bowls
Back Splash: Stainless Steel (304) Height 100mm
Legs: Stainless Steel, (4)Legs (diameter 38 mm),
or (Dimensions 40 x 40mm with added (S) on
the model), with adjustable leveling feets.
Assembly: Knockdown upon request
Faucet & Drain set: available upon request

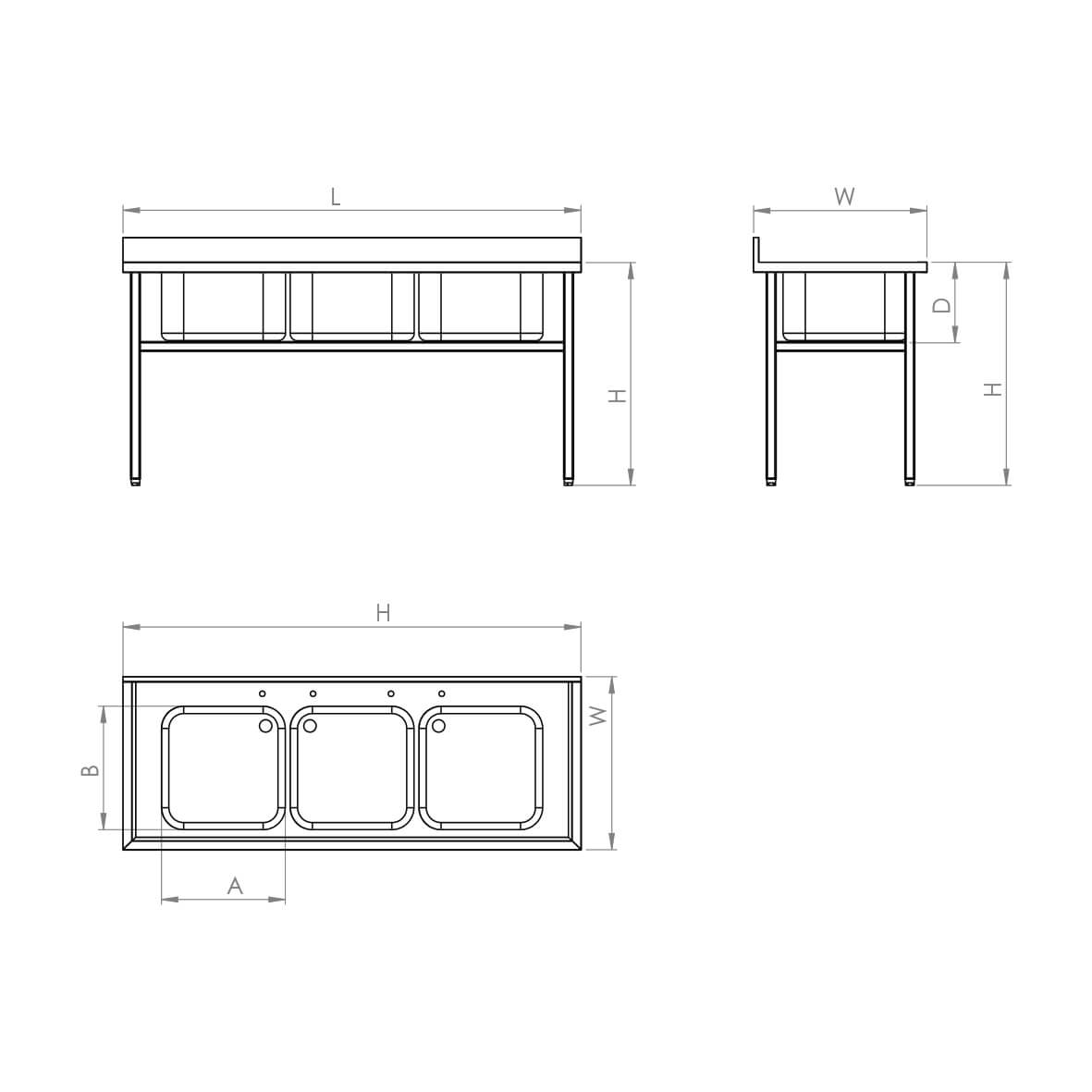

MODEL                                 Bowl Dimensions (mm)A B D                       Sink Unit Dimensions (mm) L W H

MFP02-05-T
600x 500x 300                                                             2000x 750×850
500x 500x 300                                                              1800x 750x 850
